EGLOBAL mini pc S200 High‑Performance Mini PC

Many project customers verify detailed parameters including bus protocols, interface versions, network chip specifications and memory features when evaluating the EGLOBAL mini pc S200 for solution selection, to confirm whether the hardware can match on‑site device‑connection requirements.

Built on the Intel Coffee Lake platform, the S200 can be equipped with an E‑2176M processor at 45 W TDP. It has dual SO‑DIMM DDR4 memory slots supporting up to 64 GB RAM. Fitted with AMI BIOS, the unit is compatible with Windows 10, Windows 11 and Linux, and supports PXE boot for mass‑system deployment, facilitating unified OS installation for bulk devices. Housed in an aluminum‑alloy enclosure with active fan cooling, the mini PC supports wall‑mount installation and is widely applied in commercial office environments, multimedia playback terminals, light‑industrial control hosts and other scenarios. For scheduled power‑on, the S200 supports RTC wake‑up under the S5 power state to enable unattended timed startup. Note that Intel XMP 2.0 memory overclocking is not supported across the entire S200 series, and no Thunderbolt 3 port is implemented on the hardware.

The system provides multiple expansion bays for storage. The M.2 NVMe slot adopts PCIe ×4 bus standard for high‑speed NVMe SSD operation. The M.2 NGFF SATA slot complies with NGFF 2 specification. The 2.5‑inch drive bay runs at SATA 3 speed, delivering full bandwidth for both SSDs and HDDs to satisfy high‑capacity local‑storage demands.

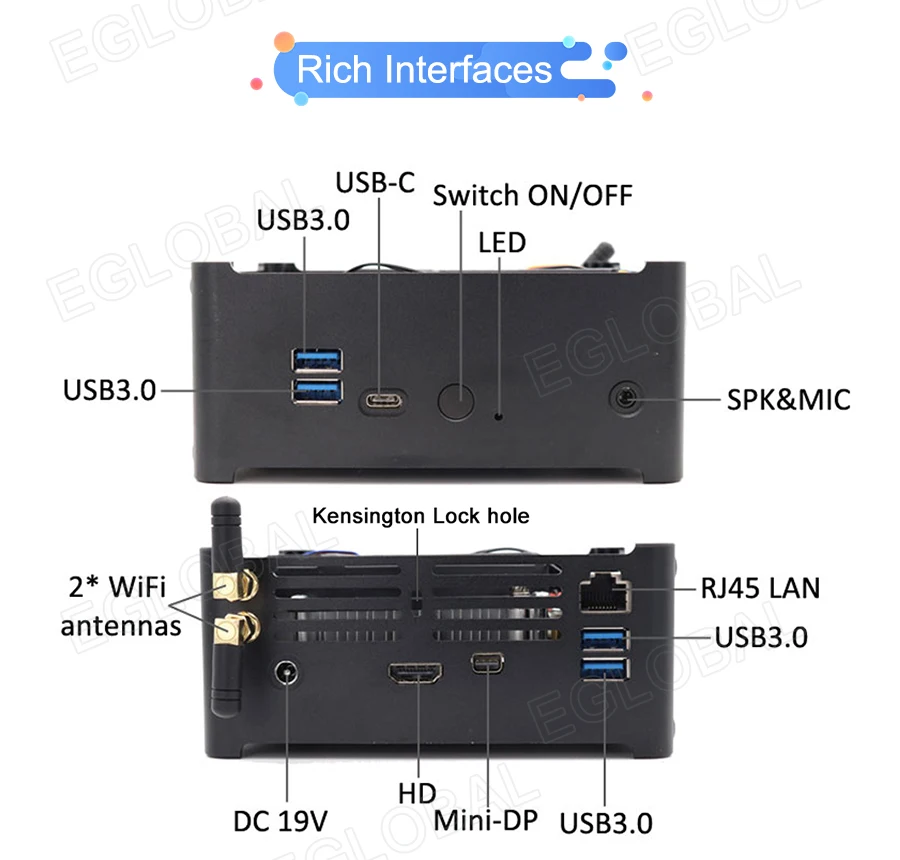

In terms of peripheral I/O, the Type‑C port conforms to USB 3.1 specification and the HDMI video output is HDMI 1.4. The onboard wired LAN uses RTL8111 chip to ensure stable wired‑network connectivity. Balancing computing power, expandability and comprehensive I/O coverage, this hardware configuration meets deployment requirements for most commercial and industrial projects.

Please contact our sales team for full technical support if you require driver verification or further hardware‑adaptation consultation.
