EGLOBAL Mini PC N100 M4B model Compatible with Versatile Storage Options Incl. Harddisk(HDD)

"Does the EGLOBAL Mini PC N100 M4B model support an HDD?" This is one of the most frequently-asked questions from purchasing clients inquiring about EGLOBAL mini pc products, and the answer is yes. Boasting powerful and flexible storage expansion capabilities, this compact EGLOBAL Mini PC N100 manufactured by the EGLOBAL mini pc factory has won wide popularity among enterprise offices, educational institutions and home users. Below we elaborate on this question and give you a full introduction to this high-performance EGLOBAL Mini PC N100 M4B model.

EGLOBAL Mini PC N100 M4B model Supports HDD Installation

The EGLOBAL Mini PC N100 M4B model offers diversified storage expansion solutions. It comes with three groups of storage slots: an M-SATA3.0 slot for mSATA SSDs, an M.2 slot compatible with NVMe 2280 SSDs, and a standard SATA3.0 slot with transfer speed up to 6Gb/s, which supports both SATA HDDs and SATA SSDs. This expandable storage mini pc is ideal for flexible deployment across projects.

It is this SATA3.0 slot that enables HDD expansion for the EGLOBAL Mini PC N100 M4B model. If you need cost-effective large-capacity storage for file archiving, you can install a traditional SATA hard disk drive. If you pursue faster boot-up speed and file-loading efficiency, a SATA solid-state drive will be your ideal choice. Whatever your file-storage requirements are, it can be configured to match your needs.

In-depth Overview of the EGLOBAL Mini PC N100 M4B model

At its core, the EGLOBAL Mini PC N100 M4B model developed by the EGLOBAL mini pc factory is equipped with an Intel N100 processor. This N100 mini pc features 4-core 4-thread configuration, a max boost frequency of 3.4 GHz and 6 MB L3 cache. With CPU TDP of merely 6W and integrated Intel UHD Graphics, the whole-system power consumption of this EGLOBAL Mini PC N100 reaches only 10W for energy-saving operation. It is equipped with one SO-DIMM DDR4 slot supporting 4GB / 8GB /16GB memory upgrade, delivering competent performance for daily office work, web browsing, media streaming and a wide range of light-duty industrial applications.

It also stands out for its well-thought-out appearance design. Housed in a full black aluminum-alloy shell, this fanless mini pc measures 135×127×38.7 mm. Thanks to its compact footprint, it can be placed on desktops, behind monitors or inside retail counters. Adopting fanless passive cooling architecture with no rotating components, this low power mini pc — the EGLOBAL Mini PC N100 M4B model—runs completely silent and supports 7×24-hour continuous operation. Low power consumption effectively cuts electricity costs. With an optional VESA mount, this wall mount mini pc can be mounted to the back of a monitor or on the wall for a neat and space-saving deployment.

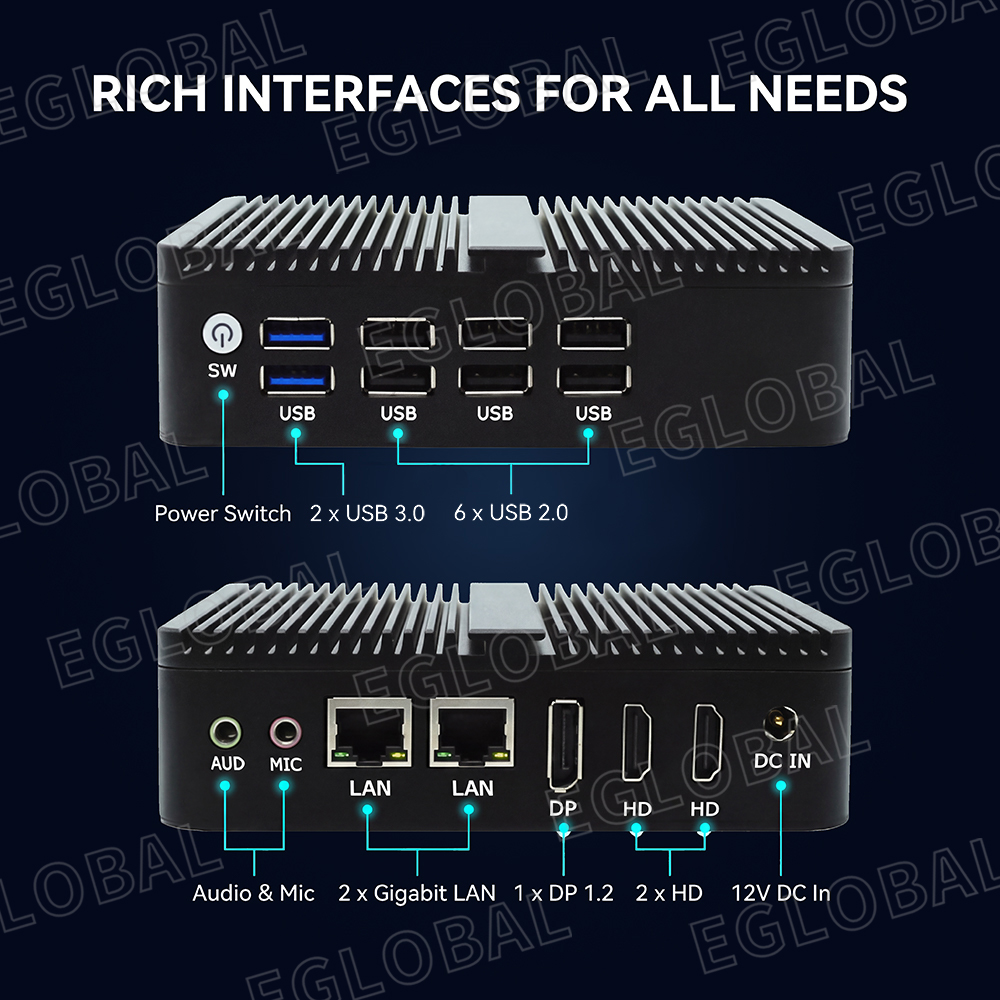

Rich I/O ports fully meet diverse real-world business requirements. This EGLOBAL Mini PC N100 M4B model supports synchronous triple-display output via HDMI 2.0, HDMI 1.4 and DP 1.2 to drive three monitors simultaneously. It is well‑suited for multi-task office work, digital signage, multi‑screen kiosks and other scenarios. Dual Gigabit LAN ports guarantee stable network connectivity. Six USB 2.0 ports together with two USB 3.0 ports allow connection to various peripheral devices. An onboard M.2 2230 slot accepts WiFi & Bluetooth combo modules, and external antennas further strengthen wireless signal reception.

Optimized for Industrial Environments & Versatile Application Scenarios

As the EGLOBAL mini pc factory, we have developed the EGLOBAL Mini PC N100 M4B model. Beyond regular desktop usage, high priority has been given to operational stability under complex and harsh conditions. As a reliable fanless industrial mini pc, it supports Windows 10, Linux and WES10 operating systems. It supports Watchdog, Auto Power-on, Wake-on-LAN and PXE boot functions to facilitate remote management and unattended operation. Its operating temperature ranges from -20℃ to +60℃.

Combined with fanless hardware structure, it can run reliably in industrial control, security monitoring, POS terminals, school education, digital signage and other scenarios requiring round-the-clock operation.

Why Choose the EGLOBAL Mini PC Factory?

EGLOBAL is an original manufacturer integrating R&D, production and sales, a professional mini pc factory. For bulk procurement orders, we provide flexible OEM & ODM customization services for mini pc products. Custom shell colors, memory, storage specifications and brand logos are all available upon request.

Whether you purchase a single unit of the EGLOBAL Mini PC N100 M4B model for home-office use or place mass orders for store-wide roll-outs, this EGLOBAL mini pc achieves a great balance of compact form factor, silent operation, abundant interfaces and powerful storage expandability.

To circle back to our opening question: does the EGLOBAL Mini PC N100 M4B model support an HDD? The answer is definitely yes. Benefiting from the native SATA3.0 slot, this mini pc delivers far more capabilities than merely HDD compatibility. Should you have any inquiries about hardware specifications or volume pricing, the technical and sales teams at the EGLOBAL mini pc factory are ready to offer you support.
