EGLOBAL Mini PC T88: 13th-Gen i5/i7 Industrial Mini PC, Dual LAN & COM Ports

As EGLOBAL Mini PC manufacturer, we are proud to launch the brand-new EGLOBAL Mini PC T88 industrial mini PC. Driven by growing market demand for low-power mini PCs capable of 7×24-hour continuous operation in factory automation, IoT gateway, machine vision and digital signage projects, this embedded mini PC is purpose-built for such scenarios. It delivers solid performance from 13th-gen Raptor Lake processors, a comprehensive set of industrial I/O interfaces, and reliable operation in harsh on-site environments, making it a standout option among dual-LAN mini-PC solutions.

Origin of the T88 Model Name

The EGLOBAL Mini PC T88 features a dedicated remote power-on/off extension terminal on the motherboard, one of the key considerations during product naming. Engineers can connect an external control switch inside equipment cabinets for remote power management, without needing to press the physical power button on the chassis. This practical hardware feature for industrial scenarios differentiates the EGLOBAL Mini PC T88 from ordinary compact mini PCs on the market.

13th-Gen Raptor Lake On-board Processor Performance

The EGLOBAL Mini PC T88 comes with three soldered-on Intel processors, all at 15 W TDP: Intel Core i5-1335U, i7-1355U and i7-1365U.

· Core i5-1335U: Base 1.3 GHz, max turbo 4.6 GHz, 12 MB cache, Intel Iris Xe Graphics

· Core i7-1355U: Base 1.7 GHz, max turbo 5.0 GHz, 12 MB cache, Intel Iris Xe Graphics

· Core i7-1365U: Base 1.8 GHz, max turbo 5.2 GHz, 12 MB cache, Intel Iris Xe Graphics

Equipped with one DDR5 memory slot supporting up to 32 GB RAM, the EGLOBAL Mini PC T88 can be configured as a high-capacity 32 GB mini PC to handle heavy multi-task workloads. It runs stably either as a Windows 11 mini PC or a Linux mini PC for custom industrial software. Two HDMI 1.4 ports support synchronous dual-screen output, making it an ideal dual-display mini PC for control-room monitoring and machine-vision image preview.

Industrial-Grade Interfaces & Core Industrial Functions

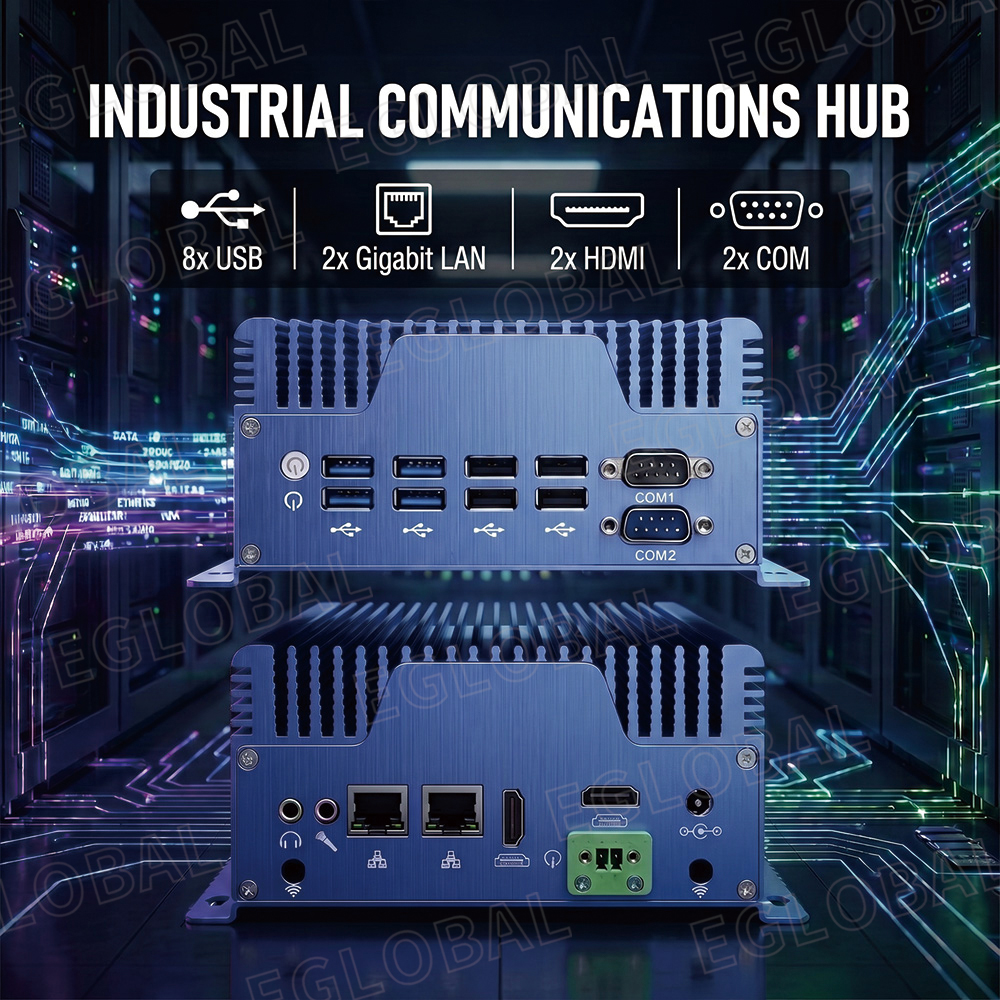

Boasting a rich interface set, the EGLOBAL Mini PC T88 is a highly competitive wide-temperature industrial mini PC designed for embedded integration:

·  2×RJ45 Gigabit LAN ports: enable network isolation for IoT gateway deployments, separating local device networks from external internet

· 2×DB9 RS232 serial ports: connect legacy PLC controllers and various sensors, widely adopted in factory-automation projects

· 4×USB2.0 + 4×USB3.0: ample ports for industrial cameras, barcode scanners and machine-vision peripheral sensors

· On-board SIM card slot together with Mini PCIE slot: expand for Wi-Fi, Bluetooth or 3G/4G modules without occupying external USB ports

· DC input: supports 12-19 V wide-range DC power supply; 12 V/5 A adapter is recommended

This EGLOBAL Mini PC T88 supports hardware watchdog, power-on-recovery after power failure, Wake-on-LAN, RTC scheduled power-on and PXE network boot. The hardware watchdog automatically restarts the host in case of system crash, an essential feature for non-stop production-line deployment.

Structural Design & Compatibility with Harsh Environments

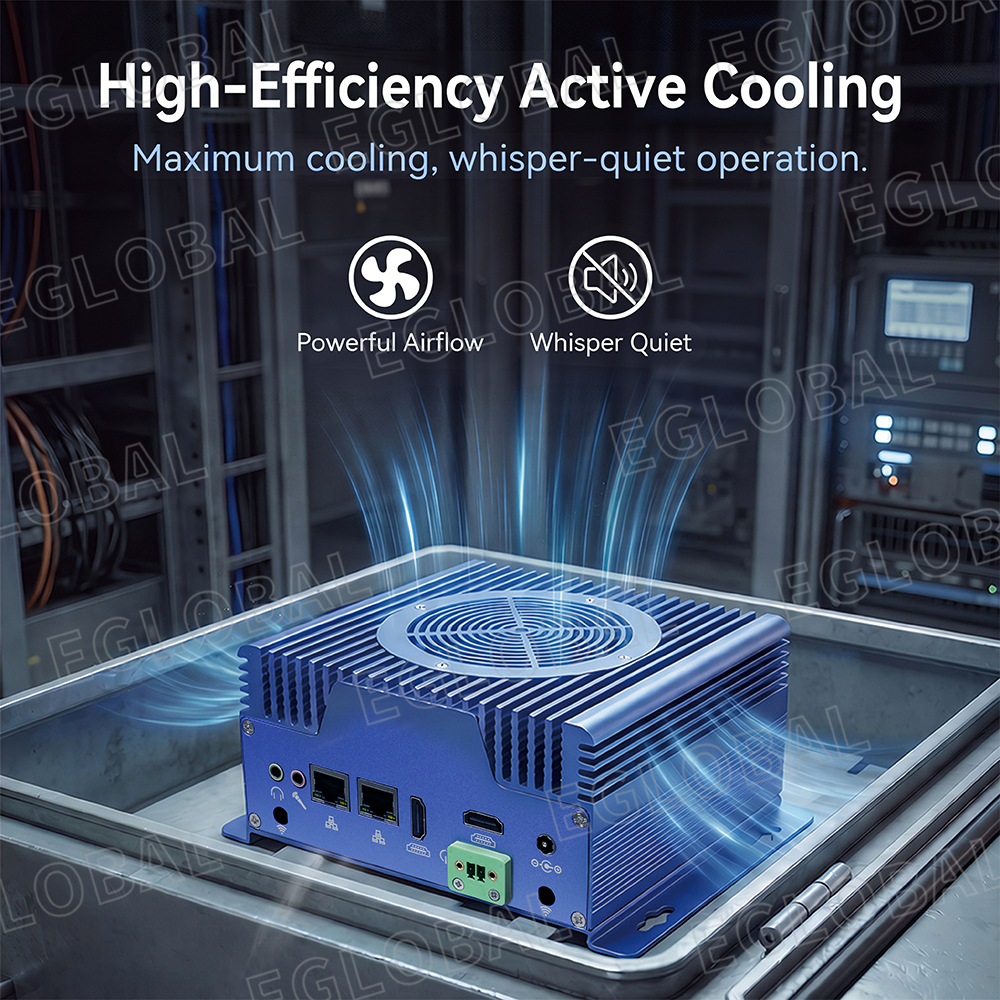

The EGLOBAL Mini PC T88 features an all-blue aluminum-alloy shell for improved heat dissipation. Note: this unit uses active fan cooling, not fanless passive cooling. Flexible OEM & ODM customisation is available for bulk orders, including shell colour modification for white-label Mini PC projects.

Dimensions: 166×126×74 mm; net weight: 1 kg. Mounting holes on the base allow wall-mount installation behind monitors to save cabinet and desktop space.

Operating temperature: ﹣20 ℃ ~ +60 ℃; storage temperature: ﹣30 ℃ ~ +70 ℃; relative humidity: 10%-90% (noncondensing). It can operate reliably in factory workshops and outdoor cabinets where ordinary desktop mini PCs cannot function stably.

For storage expansion: the EGLOBAL Mini PC T88 has one M.2 2280 slot supporting NVMe / NGFF SSDs; one SATA 3.0 interface for 2.5-inch HDD / SSD at 6 Gb/s bandwidth. Users can combine a high-speed NVMe system drive with a high-capacity SATA drive for local log and video recording storage.

Application Scenarios

Tailored for diverse industrial deployment requirements, the EGLOBAL Mini PC T88 works perfectly as mini pc for factory automation and mini pc for IoT gateway, and applies to the following use-cases:

· Factory-automation mini PC: connects PLCs, sensors and vision cameras on assembly lines; watchdog ensures uninterrupted production control

· IoT gateway mini PC: dual LAN plus 4G-SIM slot builds local edge gateways to collect on-site device data and upload to cloud

· Digital-signage mini PC: dual-HDMI drives advertising screens and kiosk terminals in shopping malls, stations and enterprise lobbies

· Machine-vision mini PC: multiple USB ports link industrial cameras for image acquisition and preliminary on-site analysis

· Enterprise edge control unit: runs Windows or Linux as industrial controller and small-scale on-site server

As an EGLOBAL Mini PC manufacturer, we deliver complete industrial-computer customisation solutions with full OEM and ODM capabilities. OEM & ODM services include custom logos, shell colour changes and hardware-spec adjustments.

FAQ

Q1: Is the EGLOBAL Mini PC T88 a fanless industrial mini PC?

A: No. The EGLOBAL Mini PC T88 adopts active fan cooling. The aluminum-alloy shell assists heat dissipation, and the built-in fan stabilises CPU temperature under prolonged heavy-load industrial operation. If you require fanless models, please explore other EGLOBAL product lines or contact our team.

Q2: Can the EGLOBAL Mini PC T88 run 24-hours non-stop?

A: Yes. Built for 7×24-hour low-power operation, it features watchdog, RTC scheduled wake-up and widetemperature hardware, engineered for round-the-clock continuous industrial operation.

Q3: Does the EGLOBAL Mini PC T88 support OEM and ODM customisation?

A: Absolutely. For bulk-purchase clients, we offer comprehensive OEM & ODM and white-label mini-PC services. Contact sales for quotations covering custom logos, custom shells, hardware modifications and other personalised requirements.

Closing Remarks

If you are searching for an industrial mini PC with 13th-gen Core performance, dual Gigabit LAN, dual RS232 serial ports and wide-temperature capability, the EGLOBAL Mini PC T88 is a reliable option. Whether you procure the EGLOBAL Mini PC T88 for your own automation projects or place large-volume dealer orders, EGLOBAL Mini PC factory delivers stable products, one-stop OEM & ODM industrial-computer customisation solutions and quality support services.
