EGSMTPC Mini PC G12-8260U Intel Core i5-8260U Dual Giga LAN 2COM HDMI Fanless Industrial PC
Onboard Intel Core i5-8260U CPU, 14nm, Dual Core Four Threads, 4MB Cache, 28W TDP, UHD Graphics 620, motherboard size 12*12cm.
2 x SO-DIMM DDR4 slots, support 4GB/8GB/16GB/32GB/64GB DDR4 memory.

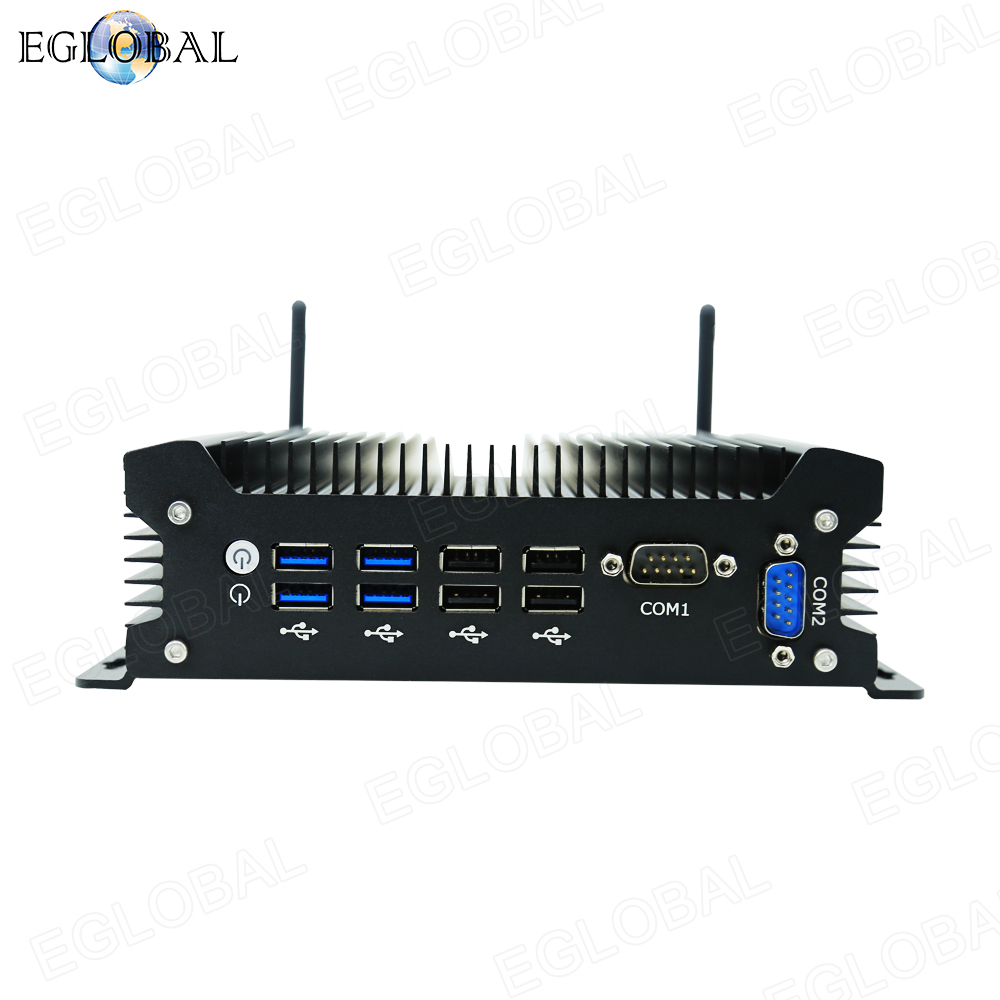

2 x Realtek RTL8111 Gigabit LAN (10/100/1000Mbps), 2 x DB9 RS232 COM ports, onboard SIM slot for 3G/4G.
Display: 2 x HDMI 1.4 synchronous dual display; 4 x USB2.0 + 4 x USB3.0, 1 x MIC in, 1 x SPK out.
Storage: 1 x M.2 NVME/NGFF 2280 SSD slot, 1 x SATA3.0 for SATA HDD/SSD (6Gb/s).
2 x mini PCIE slots: one for WiFi/BT, another for 3G/4G module; 2 RF antennas included.

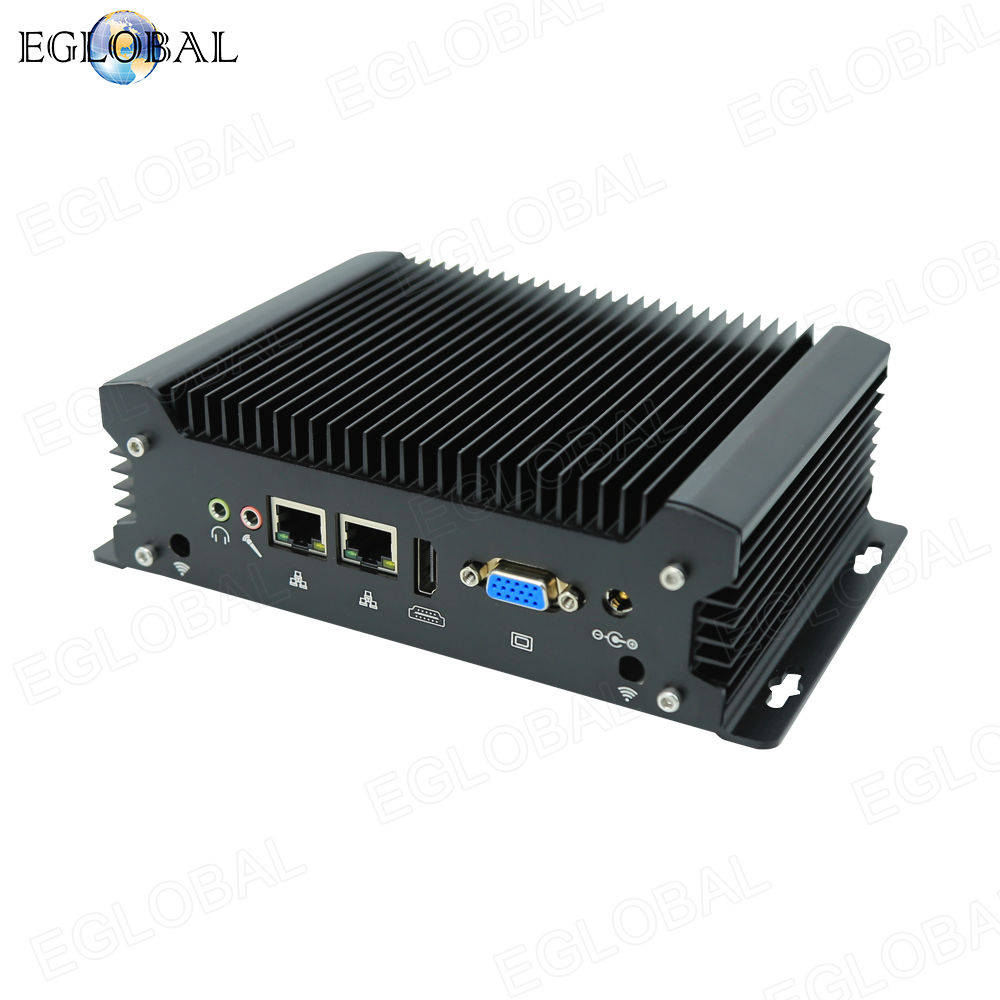

Black aluminum alloy shell, fanless cooling, support wall mounting with 4 mounting holes.
Pre-install functions: AWAL, Wake On LAN, RTC, Watchdog, PXE boot.
Support OS: Win8/10, WES7, Linux; power input DC 12V-19V, recommended 12V/5A.
Working temp: -20℃ ~ +60℃, storage temp: -30℃ ~ +70℃, humidity 10%-90%@30℃ non-condensing.

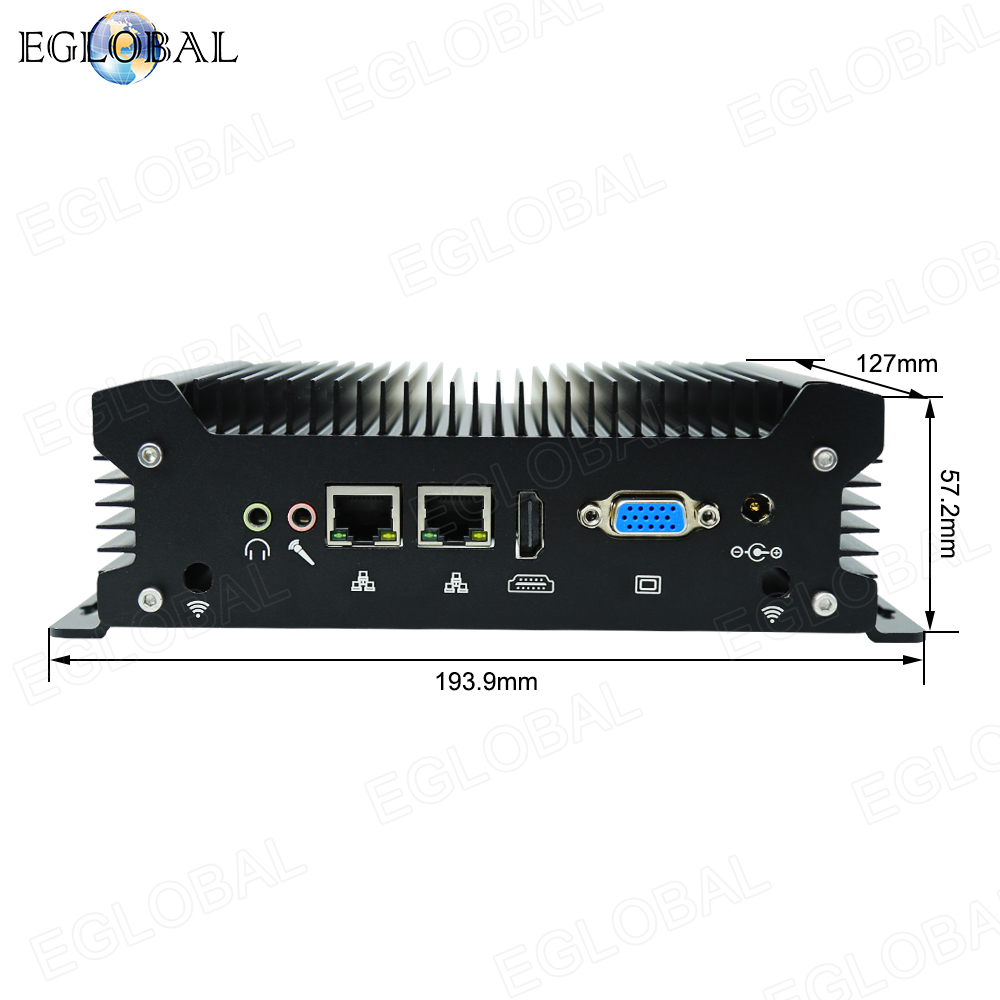

Dimension:193.3×127×57.2mm, net weight 1kg, gross weight 1.5kg.
You can buy sample unit to test directly if PayPal is available for you.
The link is for the following Specification:
Barebone System
- No RAM
- No Storage
- Without WiFi module and antenna
Windows 8 / Windows 10 / WES7 / Linux
Including DHL/FedEx/UPS/EMS/Postage shipping
Box PC Device
EU/AM/BR/AU standard Power Adapter
Power Cord
screw Bag
WiFi Antennas (optional)
HDMI Cable (optional)
User Manual (optional)
If you need memory and hard disk, we can help you install and assemble, and extra fees will be charged. If you need to change the system or require OEM/ODM services, please contact us.
We are glad to assist you. Our PayPal account (PayPal will charge an additional 5% handling fee): eglobalcoral@gmail.com



If you like it, you can contact us by email. We provide efficient services!!
Contact: EGSMTPC
Phone: +86 13418881073
Tel: +86 13418881073
E-mail: coral@eglobaltech.cn
Add: 16D, QUANZHI Science & Technology Building, Maozhoushan Industrial Park, Hou Ting Community, Sha Jing Street, Bao'an District, Shenzhen, 518104 China
