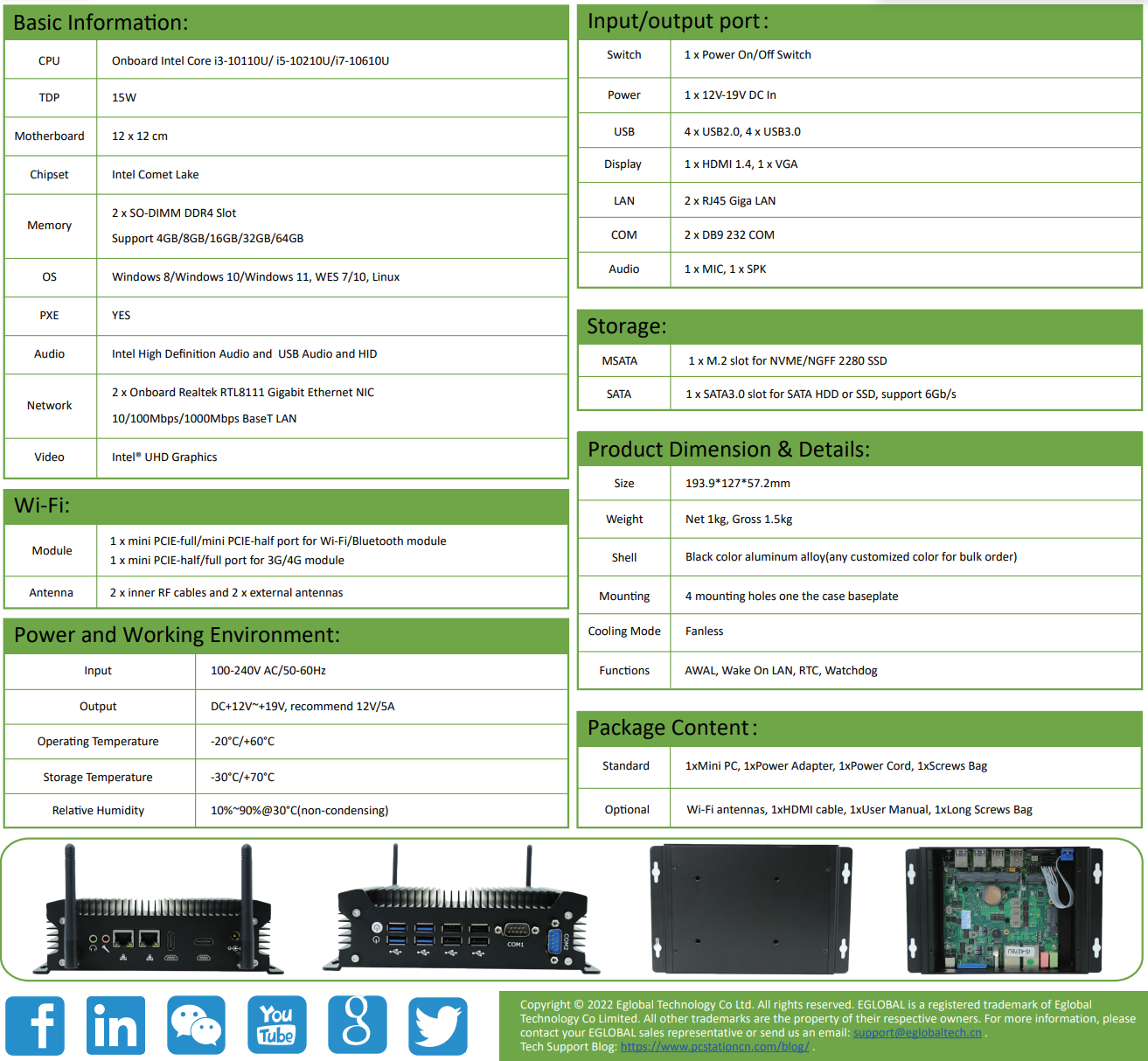

EGSMTPC G12 Mini PC Intel i3‑10110U i5‑10210U i7‑10610U 2LAN 2COM VGA HDMI Industrial Fanless PC
- Onboard Intel Comet Lake CPU, optional i3‑10110U / i5‑10210U / i7‑10610U, 15W TDP, motherboard size 12*12cm.
- 2 x SO‑DIMM DDR4 slots, support 4GB/8GB/16GB/32GB/64GB DDR4 memory.
- 2 x Realtek RTL8111 Gigabit LAN (10/100/1000Mbps), 2 x DB9 RS232 COM ports.

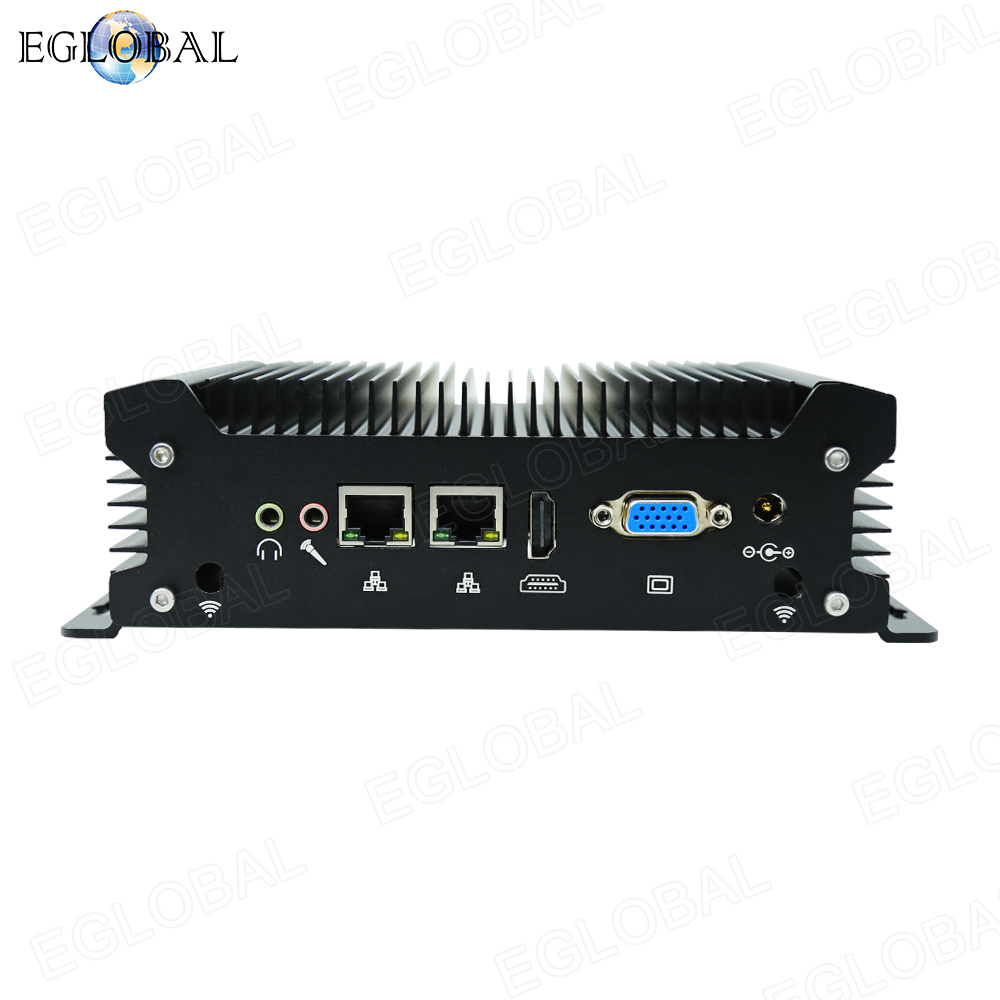

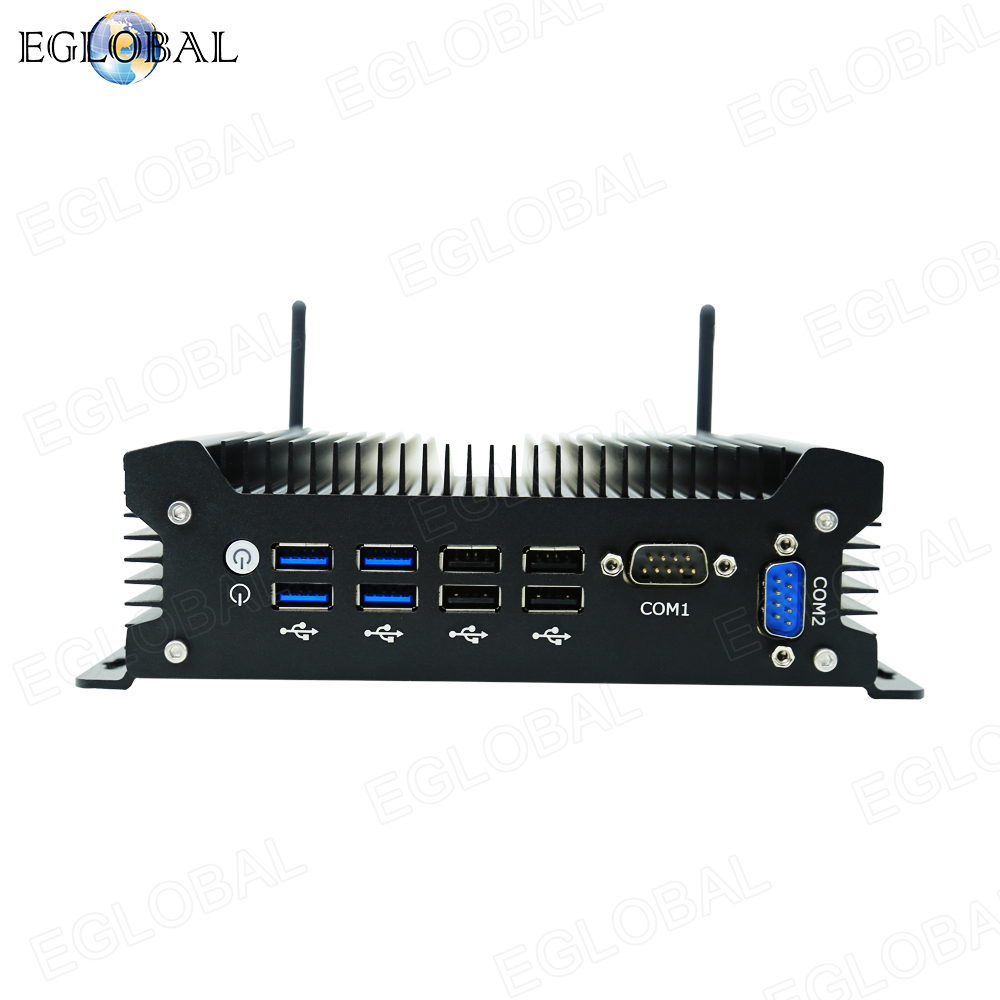

- Display: 1 x HDMI 1.4 + 1 x VGA; 4 x USB2.0 + 4 x USB3.0, 1 x MIC in, 1 x SPK out.
- Storage: 1 x M.2 NVME/NGFF 2280 SSD slot, 1 x SATA3.0 for SATA HDD/SSD (6Gb/s).

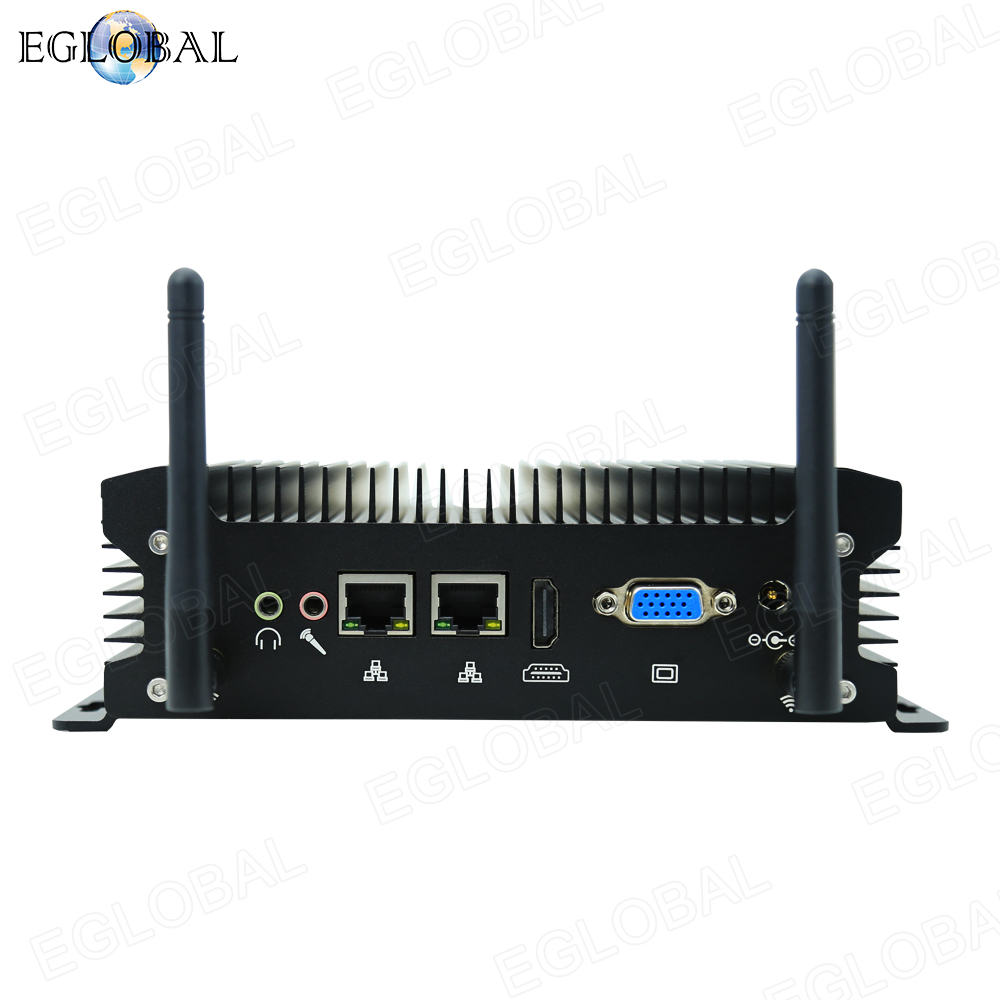

- 2 x mini PCIE slots: one for WiFi/BT, another for 3G/4G module; 2 RF antennas included.
- Black aluminum alloy shell, fanless cooling, support wall mounting with 4 mounting holes.
- Pre‑install functions: AWAL, Wake On LAN, RTC, Watchdog, PXE boot.
- Support OS: Win8/10/11, WES7/10, Linux; power input DC 12V‑19V, recommended 12V/5A.
- Working temp: -20℃ ~ +60℃, storage temp: -30℃ ~ +70℃, humidity 10%‑90%@30℃ non‑condensing.
- Dimension:193.9*127*57.2mm, net weight 1kg, gross weight 1.5kg.
You can buy sample unit to test directly via our PayPal account: eglobalcoral@gmail.com. Note: PayPal will charge an additional 5% handling fee.
Note: PayPal will charge an additional 5% handling fee.
The link is for the following Specification: Barebone System
- No RAM
- No Storage
- Without WiFi module and antenna
- Windows 8 / Windows 10 / Windows 11 / Linux
- Including DHL/FedEx/UPS/EMS/Postage shipping
* Mini PC Device
* EU/AM/BR/AU standard Power Adapter
* Power Cord
* screw Bag
* WiFi Antennas (optional)
* HDMI Cable (optional)
* User Manual (optional)
G12-10110U——288$ for 1 piece
G12-10210U——318$ for 1 piece
G12-10610-U——368$ for 1 piece
If you need memory and hard disk, we can help you install and assemble, and extra fees will be charged.
If you need to change the system or require OEM/ODM services, please contact us. We are glad to assist you.
